Welded Hydraulic Cylinders: Built for Heavy Duty Performance
When a hydraulic cylinder fails in the field, the cost isn’t just the cylinder — it’s the equipment downtime, the delayed job, and the emergency repair bill. The construction method at the heart of every cylinder determines how it holds up under real-world pressure, shock loads, and continuous operation. Welded hydraulic cylinders are built to meet those demands. At Carlson Hydraulics, we’ve been manufacturing heavy-duty welded cylinders in Wichita, Kansas since 1953 — purpose-built for the applications where reliability is non-negotiable.
What Is a Welded Hydraulic Cylinder?
Welded hydraulic cylinders are defined by their construction: the end caps are welded directly onto the barrel, creating a single, unified cylinder body. This approach eliminates the leak paths and mechanical weaknesses inherent in other designs, making welded cylinders the standard choice for demanding applications across construction, agriculture, industrial manufacturing, and material handling.
Welded and Tie-Rod Cylinders: Choosing the Right Design
Hydraulic cylinders are manufactured using two primary construction methods: welded and tie-rod. Tie-rod cylinders use external threaded rods to secure the end caps to the barrel, making them a versatile and serviceable option well-suited to a wide range of industrial and mobile applications. Welded cylinders have the end caps welded directly onto the barrel, creating a single unified cylinder body with no external fasteners.
The right choice depends on your application’s specific demands. Welded construction is particularly well-suited to high-pressure environments, heavy shock loads, and applications where space constraints make external tie-rods impractical. For many standard industrial applications, tie-rod cylinders remain an excellent, cost-effective solution. At Carlson Hydraulics, we specialize in welded cylinder manufacturing — built to the exact specifications your application requires.

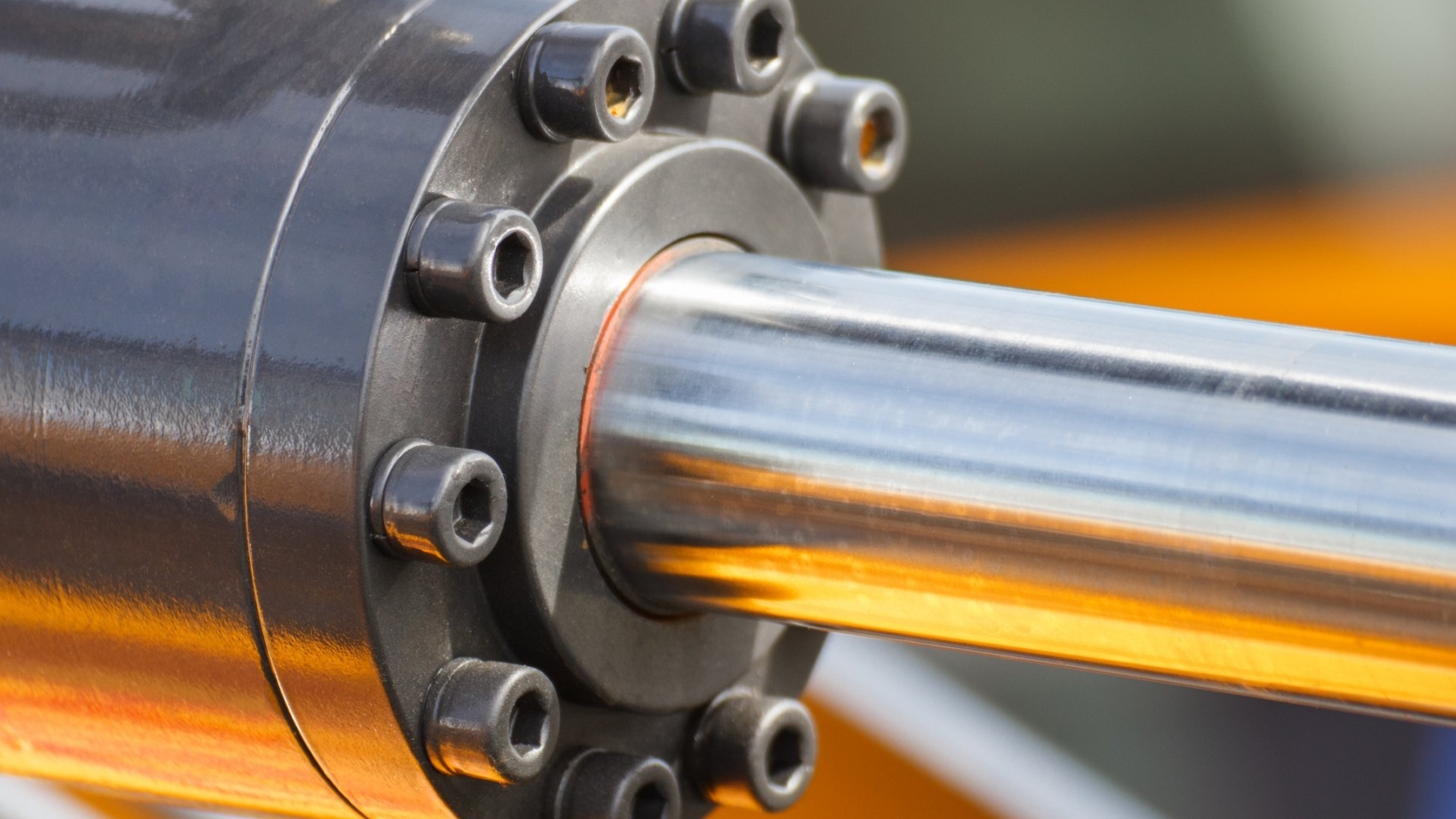

Key Components: Tube, Rod, and Piston
Every welded hydraulic cylinder shares a common set of core components, each engineered for strength and precision. The cylinder tube — or barrel — is the structural housing through which the piston travels. At Carlson, we use precision-honed tubing that provides a smooth bore surface for optimal seal performance and longevity. The end caps are welded directly onto the barrel, forming the sealed cylinder body that contains hydraulic pressure.
The piston rod extends from the piston through the rod-end cap, transmitting force to the application. Our rods are hard chrome plated for wear resistance and corrosion protection. The piston itself seals against the tube bore, maintaining the pressure differential that generates force. Together, these components form a hydraulic cylinder built to withstand continuous heavy-duty operation.
Why Welded Cylinders Excel in Heavy Duty Applications
For heavy equipment and industrial machinery operating under high pressure, harsh environments, and continuous load cycles, welded cylinder construction offers distinct advantages. Strength, durability, and design flexibility make welded hydraulic cylinders the preferred choice for demanding applications where performance and reliability are critical.
Superior Weld Strength and Structural Integrity
The strength of a welded hydraulic cylinder comes from the quality and consistency of its welds. At Carlson Hydraulics, we use CNC robotic welding to deliver consistent, full-penetration welds on every cylinder we manufacture. Our robotic welding systems precisely control heat input, travel speed, and arc characteristics, producing welds with uniform bead geometry and maximum structural integrity. All cylinder welds are visually inspected after welding, combining automated process control with manual quality verification.
This manufacturing precision allows our cylinders and welded assemblies to withstand shock loads, side forces, and high-pressure operation cycle after cycle. Our all-welded design is rated up to 5000 PSI, making these cylinders capable of handling the most severe duty applications in construction, mining, and industrial hydraulics.
Custom Configuration Advantages
Welded construction also enables greater manufacturing flexibility for custom hydraulic cylinders. Because the cylinder body is assembled by welding rather than constrained by standard tie-rod spacing, bore sizes, stroke lengths, and mounting configurations can be tailored to exact application requirements. This makes welded cylinders particularly well-suited for OEM applications where standard catalog dimensions don’t match the equipment design.
Whether you need a compact cylinder for tight installations or an extended stroke for maximum reach, welded construction accommodates the dimension and configuration your application demands. Learn more about our custom hydraulic cylinders and how we build to your exact specifications.
Welded Hydraulic Cylinder Specifications
Carlson’s welded cylinders are available across a wide range of bore sizes, stroke lengths, and rod configurations to match your application’s load and environment requirements. Every specification decision — from bore sizes to rod material — affects how the cylinder performs under pressure and over time.
Rod Options: Chrome, IHCP, Nickel, and Nitro
The cylinder rod is one of the most critical components in a hydraulic cylinder, bearing tensile and compressive forces while maintaining the smooth surface that protects rod seals. We manufacture rods in several configurations depending on operating environment and durability requirements. Standard hard chrome plated rods provide excellent wear resistance and corrosion protection for most applications. For maximum durability in severe duty environments, IHCP (Induction Hardened Chrome Plated) rods combine induction hardening with hard chrome plating for exceptional surface hardness and strength.
For applications where corrosion is the primary concern — marine environments, chemical exposure, or outdoor equipment in high-moisture environments — our nickel rods deliver superior corrosion resistance. Nitro rods offer exceptional surface hardness for applications subject to abrasion and wear. Rod diameter specifications are matched to the bore size, stroke length, and maximum operating pressure of each cylinder to ensure structural integrity under load.
Tube and Bore Specifications
The cylinder tube is manufactured from precision-honed steel tubing, providing the smooth bore surface that seals require for consistent performance and long service life. Bore sizes determine the force output of the cylinder — larger bore sizes generate greater force at a given operating pressure. Our welded cylinders handle continuous operation at 3000 PSI for standard heavy-duty applications, with our heavy-duty welded design rated up to 5000 PSI for severe duty operation.
Stroke lengths are specified to match your application’s travel requirements, whether that’s a short-stroke cylinder for precise positioning or an extended stroke for maximum reach. Mounting configurations include welded clevis and threaded clevis options, flange mounts, trunnion mounts, and spherical bearing configurations for applications requiring angular alignment. The bolt pattern and mounting hardware are engineered to match your equipment interfaces.
Welded Cylinder Applications Across Industries
Hydraulic cylinders deliver the force that powers heavy equipment across every major industry. Welded cylinders are engineered for applications where high pressure, harsh environments, or continuous operation place the greatest demands on cylinder strength and reliability.
Construction and Heavy Equipment
Construction equipment represents one of the most demanding environments for hydraulic cylinders. Excavators, bulldozers, loaders, and earthmoving machinery operate in abrasive, high-shock conditions that put enormous stress on every cylinder. Excavator arm and bucket cylinders must generate maximum force to break through compacted soil and rock, then retract with equal control to curl the bucket and lift heavy loads. Loader cylinders on wheel loaders and skid steers cycle continuously as operators move material, requiring seal packages that withstand contamination from dust and mud. These applications require double-acting cylinders that provide powered control in both directions, and welded construction that can withstand the shock loads inherent in heavy equipment operation.
Agriculture and Industrial Hydraulics
Modern agriculture depends on hydraulic power for productivity across demanding field conditions. Tractor front-end loaders, harvesting equipment, and implements rely on cylinders that operate reliably despite dust, moisture, and continuous cycling during harvest season. Cylinder failure during harvest creates costly delays — welded construction and superior seal packages minimize that risk.
In industrial manufacturing, hydraulic cylinders deliver the force for presses, injection molding equipment, metalworking machinery, and assembly operations. Material handling equipment — from dock lifts to industrial conveyors — requires cylinders that operate reliably through millions of cycles. Mining operations demand cylinders built to withstand extreme environments and heavy loads. Across all these applications, our American-made hydraulic cylinders deliver the performance and durability demanding applications require.
Welded Hydraulic Cylinder Replacement and Repair
Even the most rugged welded hydraulic cylinder eventually requires maintenance. Understanding when to pursue cylinder replacement versus repair — and having access to a manufacturer who handles both — helps minimize downtime and extend the service life of your hydraulic systems.
When to Replace vs. Repair
Seal failure is the most common hydraulic cylinder issue, and in many cases a seal replacement or cylinder rebuild restores full performance at a fraction of replacement cost. Rod scoring caused by contamination, corrosion damage to the cylinder tube, or worn piston surfaces are all candidates for professional repair. However, when the cylinder body itself is damaged — through structural failure, severe corrosion, or damage to the barrel or end caps — replacement is typically the more cost-effective path.
For hard-to-find replacement hydraulic cylinders, Carlson Hydraulics can manufacture a direct replacement to the original specifications, often faster than sourcing through standard distribution channels. Our engineering team can also use the opportunity to upgrade specifications — improving rod material, seal packages, or pressure rating — when building a replacement cylinder.
Carlson’s Cylinder Repair Services
Carlson Hydraulics offers professional hydraulic cylinder repair services for cylinders of all brands and sizes. Our repair process includes complete disassembly, thorough inspection of all components, and replacement of worn or damaged parts using high-quality components. We stock hydraulic seals and seal kits from trusted brands to support both our repair services and customer maintenance needs. All cylinder repairs are backed by our warranty. Whether you need a complete rebuild or a targeted repair to address a specific failure, our team applies the same precision manufacturing standards to repair work that we bring to new cylinder production.
Carlson’s Welded Cylinder Manufacturing Process
Manufacturing high quality welded hydraulic cylinders requires precision equipment, skilled operators, and rigorous quality control at every stage. At Carlson Hydraulics, we’ve refined our manufacturing processes over more than 70 years to deliver cylinders that operate reliably under the most demanding conditions.
CNC Robotic Welding Quality
Our manufacturing process centers on CNC equipment that delivers consistent results on every cylinder. CNC robotic welding systems precisely control every parameter affecting weld quality, producing welds with full penetration and consistent structural integrity. CNC turning centers machine precision bore surfaces and rod dimensions to tight tolerances. CNC mills create custom mounting features, port locations, and specialized configurations.
This combination of advanced equipment and skilled operators ensures that every welded hydraulic cylinder leaving our Wichita facility meets exact specifications. We manufacture custom hydraulic cylinders in the USA, giving customers direct access to our engineering and manufacturing team throughout the production process. Learn more about our custom hydraulic cylinder manufacturing in the USA.
Individual Hydraulic Fluid Testing and 2-Year Warranty
Every cylinder we manufacture is tested individually before shipment — we don’t spot-check production runs. Each cylinder is pressurized with hydraulic fluid on our test bench and cycled through complete extension and retraction at its rated working pressure. This verifies seal integrity, proper rod and piston movement, and the absence of leaks under actual operating conditions. Cylinders are available with pressure ratings verified individually for your specific application requirements.
Our smart cylinders incorporate position sensing for applications requiring real-time feedback, and our integrated cartridge valve cylinders include safety valving built directly into the cylinder design. All cylinders are backed by our 2-year limited warranty covering manufacturing defects — a reflection of our confidence in the quality of every cylinder we build.
Partner with Carlson Hydraulics for Welded Cylinder Solutions
Welded hydraulic cylinders set the standard for strength, durability, and reliability in heavy duty applications. The all-welded construction is purpose-built for high-pressure, high-cycle environments, while precision manufacturing ensures consistent performance across every cylinder we produce. From construction and agriculture to industrial manufacturing and material handling, Carlson Hydraulics has the manufacturing capability and 70 years of experience to build the cylinder your application demands.
Whether you need a standard replacement welded cylinder, a custom bore and stroke combination, or a specialty configuration with integrated valves or position sensing, Carlson Hydraulics delivers from our Wichita, Kansas facility with lead times of 4 to 10 weeks. Every cylinder is backed by our 2-year warranty and supported by our experienced engineering and manufacturing team.
Ready to discuss your welded hydraulic cylinder requirements? Contact Carlson Hydraulics today to get a quote and put our experience to work for your application.
